Description

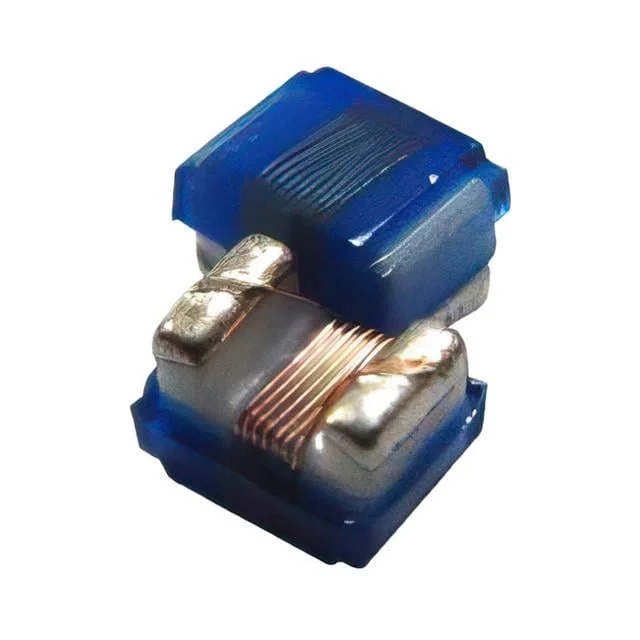

FIXED IND 3.3UH 440MA 1.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWLS001611093R3J00.
BWLS001611093R3J00 has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWLS001611093R3J00 is rated for 440 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWLS001611093R3J00 lists a DC resistance of 1.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWLS001611093R3J00 uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWLS001611093R3J00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | ±5% |
| Current Rating | 440 mA |
| DC Resistance (DCR) | 1.5Ohm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.063" L x 0.043" W (1.60mm x 1.10mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 3.3UH 440MA 1.5 OHM |
| Series | BWLS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 17 @ 7.9MHz |
| Self Resonant Frequency | 84MHz |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.043" (1.10mm) |
