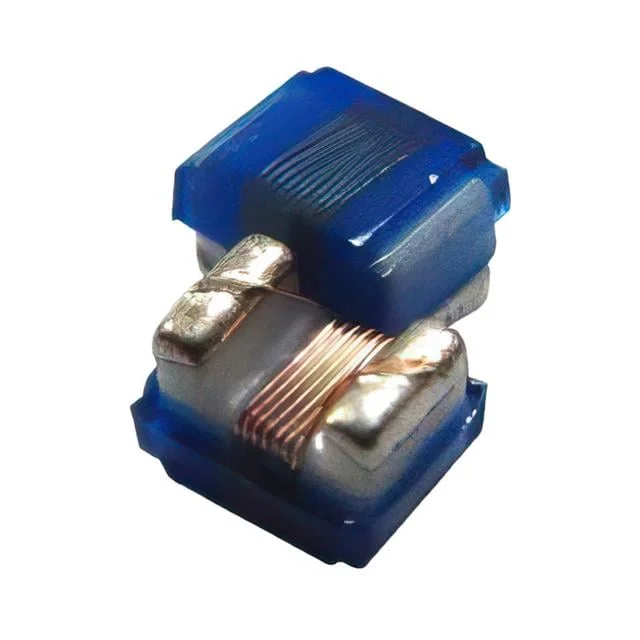

FIXED IND 18UH 300MA 4.9 OHM SMD
| Inductance | 18 µH |
| Tolerance | ±10% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 4.9Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.094" L x 0.068" W (2.40mm x 1.72mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 18UH 300MA 4.9 OHM SMD |
| Series | BWLS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 16 @ 2.5MHz |
| selfResonantFreq | 25MHz |
| ratings | - |
| testFrequency | 2.5 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 |
| heightMax | 0.060" (1.52mm) |
| features | - |
