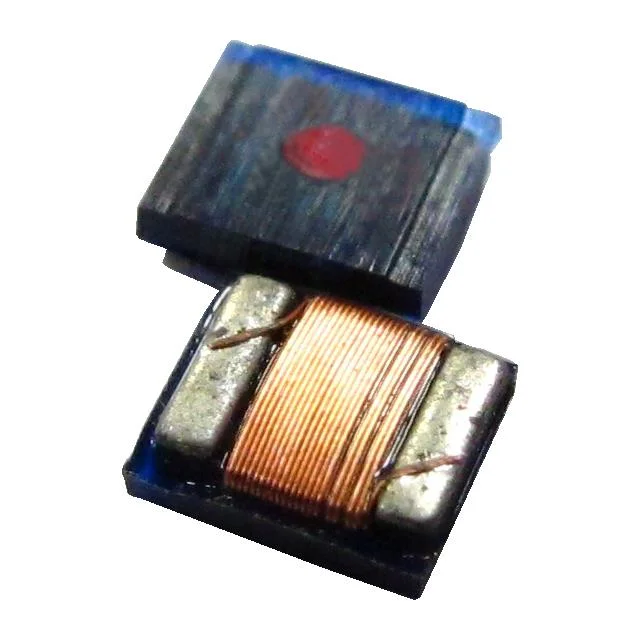

FIXED IND 3.3UH 1.62 OHM SMD
| Inductance | 3.3 µH |
| Tolerance | ±5% |
| Current Rating | - |
| DC Resistance (DCR) | 1.62Ohm Max |
| saturationCurrent | 580mA |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.094" L x 0.073" W (2.40mm x 1.85mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 3.3UH 1.62 OHM SMD |
| Series | BWLT |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.041" (1.05mm) |
| features | - |
