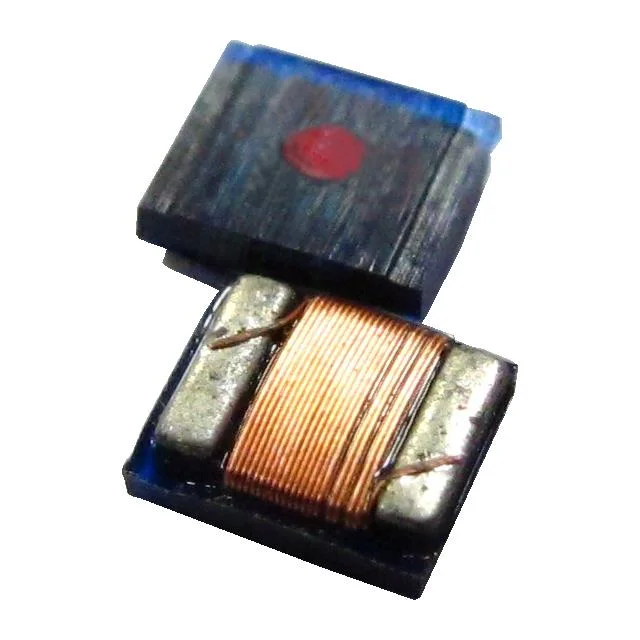

FIXED IND 560NH 670 MOHM SMD
| Inductance | 560 nH |
| Tolerance | ±10% |
| Current Rating | - |
| DC Resistance (DCR) | 670mOhm Max |
| saturationCurrent | 770mA |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.094" L x 0.073" W (2.40mm x 1.85mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 560NH 670 MOHM SMD |
| Series | BWLT |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 25.2 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.041" (1.05mm) |
| features | - |
