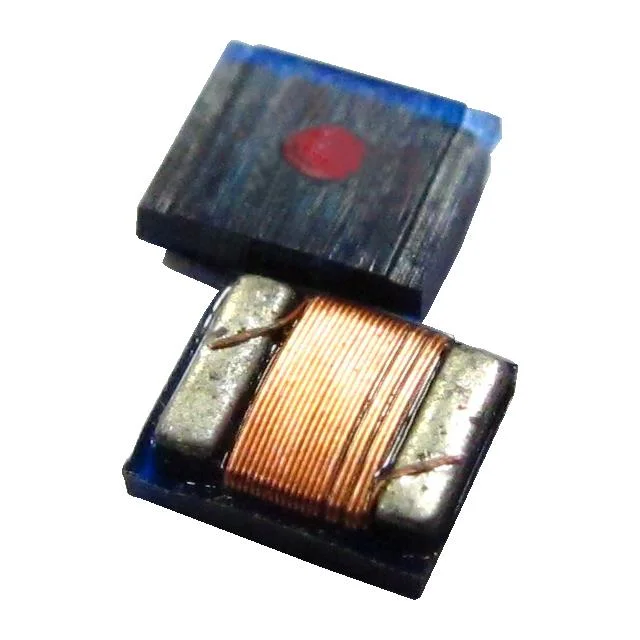

FIXED IND 18UH 4.79 OHM SMD
| Inductance | 18 µH |
| Tolerance | ±5% |
| Current Rating | - |
| DC Resistance (DCR) | 4.79Ohm Max |
| saturationCurrent | 420mA |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.148" L x 0.122" W (3.75mm x 3.10mm) |
| Case / Size | 1210 (3225 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 18UH 4.79 OHM SMD |
| Series | BWLT |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1210 |
| heightMax | 0.041" (1.05mm) |
| features | - |
