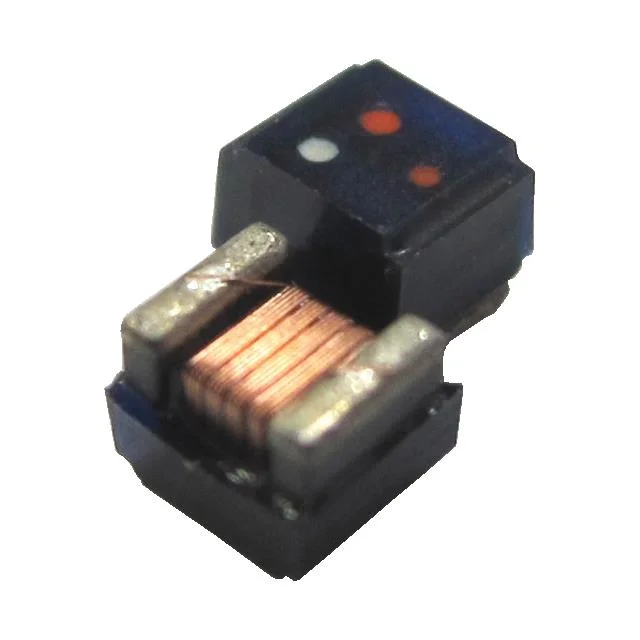

FIXED IND 120NH 600MA 200 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWNL00241715R12J00.
BWNL00241715R12J00 has an inductance value of 120 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWNL00241715R12J00 is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWNL00241715R12J00 lists a DC resistance of 200mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWNL00241715R12J00 uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWNL00241715R12J00 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 120 nH |
| Tolerance | ±5% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 200mOhm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.094" L x 0.068" W (2.40mm x 1.72mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 120NH 600MA 200 MOHM |
| Series | BWNL |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 25 @ 25.2MHz |
| Self Resonant Frequency | 500MHz |
| Inductance Test Frequency | 25.2 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.060" (1.52mm) |
