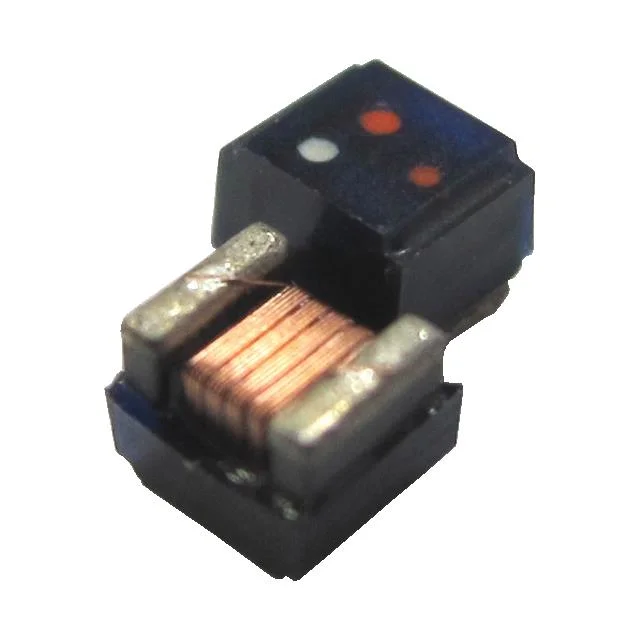

FIXED IND 330NH 510MA 450 MOHM
| Inductance | 330 nH |
| Tolerance | ±5% |
| Current Rating | 510 mA |
| DC Resistance (DCR) | 450mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.094" L x 0.068" W (2.40mm x 1.72mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 330NH 510MA 450 MOHM |
| Series | BWNL |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 25 @ 25.2MHz |
| selfResonantFreq | 235MHz |
| ratings | - |
| testFrequency | 25.2 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 |
| heightMax | 0.060" (1.52mm) |
| features | - |
