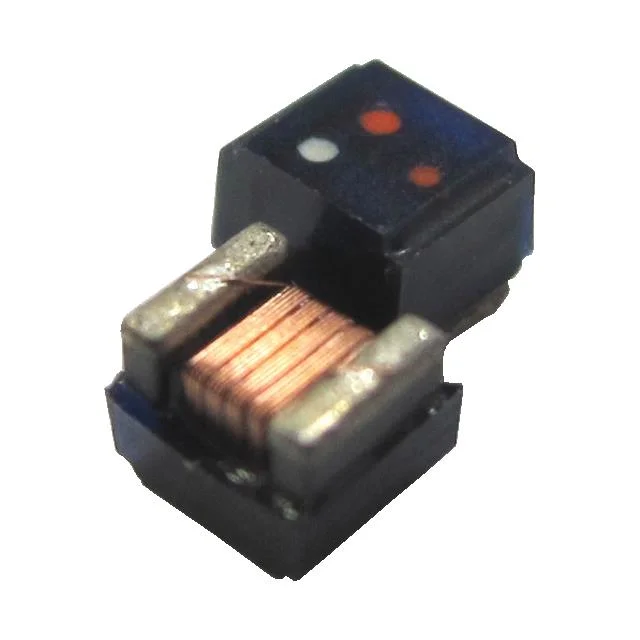

FIXED IND 680NH 420MA 700 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWNL00241715R68K00.
BWNL00241715R68K00 has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWNL00241715R68K00 is rated for 420 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWNL00241715R68K00 lists a DC resistance of 700mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWNL00241715R68K00 uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
