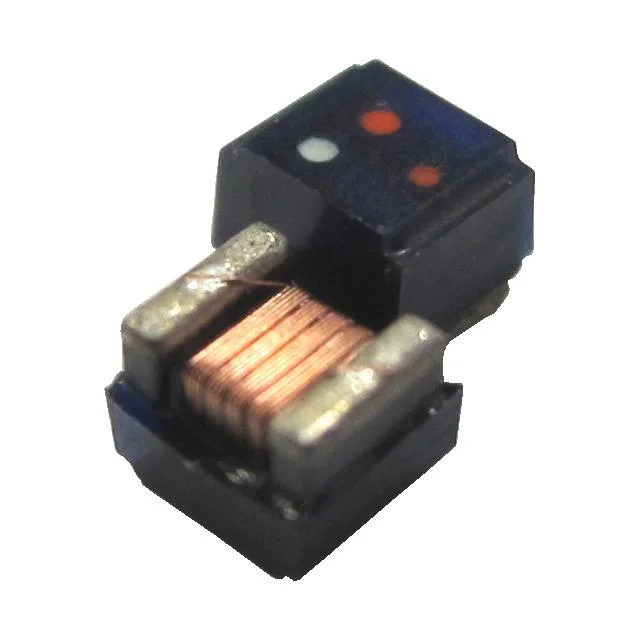

FIXED IND 2.2UH 750MA 1.55 OHM
| Inductance | 2.2 µH |
| Tolerance | ±5% |
| Current Rating | 750 mA |
| DC Resistance (DCR) | 1.55Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.115" L x 0.098" W (2.92mm x 2.50mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.2UH 750MA 1.55 OHM |
| Series | BWNL |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 25 @ 7.96MHz |
| selfResonantFreq | 105MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.087" (2.20mm) |
| features | - |
