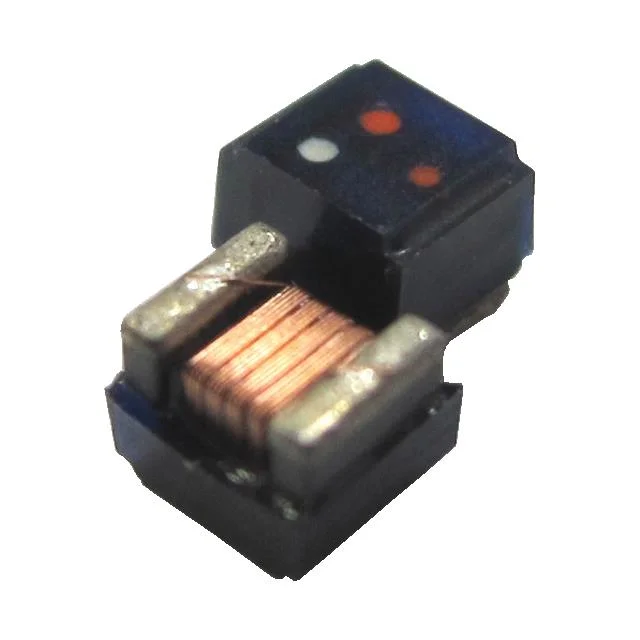

FIXED IND 560NH 800MA 750 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWNL00292522R56J00.
BWNL00292522R56J00 has an inductance value of 560 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWNL00292522R56J00 is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWNL00292522R56J00 lists a DC resistance of 750mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWNL00292522R56J00 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWNL00292522R56J00 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 560 nH |
| Tolerance | ±5% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 750mOhm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.115" L x 0.098" W (2.92mm x 2.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 560NH 800MA 750 MOHM |
| Series | BWNL |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 25.2MHz |
| Self Resonant Frequency | 325MHz |
| Inductance Test Frequency | 25.2 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.087" (2.20mm) |
