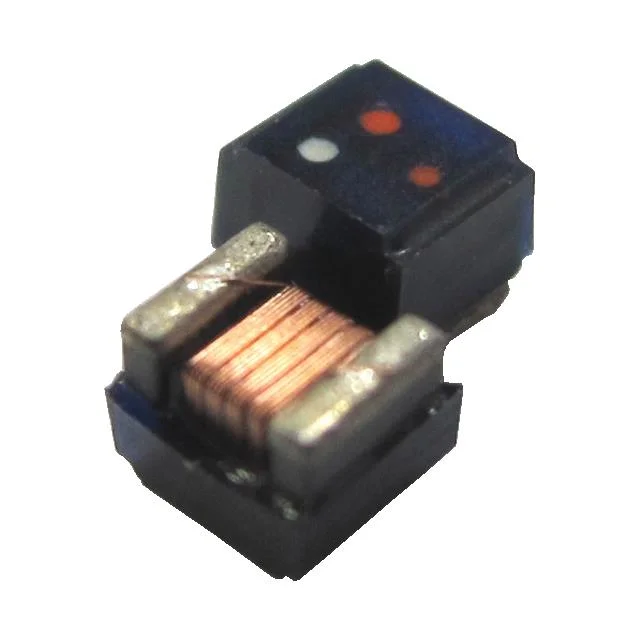

FIXED IND 10NH 1.8A 250 MOHM SMD
| Inductance | 10 nH |
| Tolerance | ±5% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 250mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 10NH 1.8A 250 MOHM SMD |
| Series | BWNL |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 10 @ 100MHz |
| selfResonantFreq | 2.5GHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 |
| heightMax | 0.087" (2.20mm) |
| features | - |
