Description

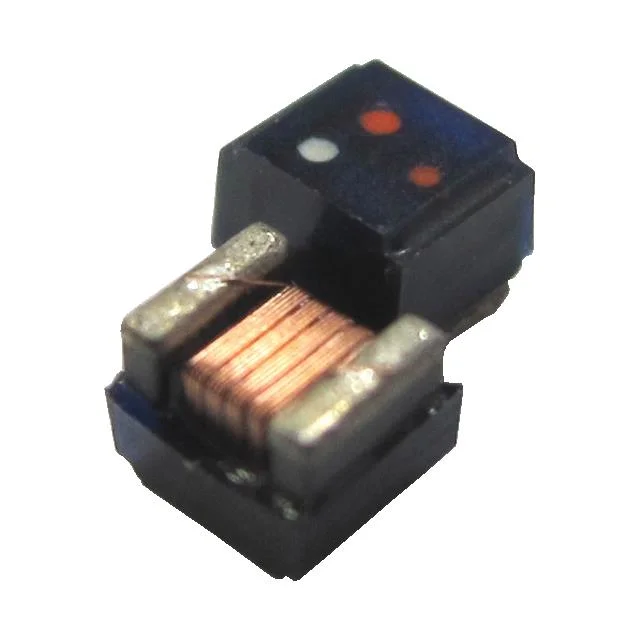

FIXED IND 5NH 2A 250 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWNL002928225N0K00.
BWNL002928225N0K00 has an inductance value of 5 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWNL002928225N0K00 is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWNL002928225N0K00 lists a DC resistance of 250mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWNL002928225N0K00 uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWNL002928225N0K00 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 5 nH |
| Tolerance | ±10% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 250mOhm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 5NH 2A 250 MOHM SMD |
| Series | BWNL |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 10 @ 100MHz |
| Self Resonant Frequency | 3GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.087" (2.20mm) |
