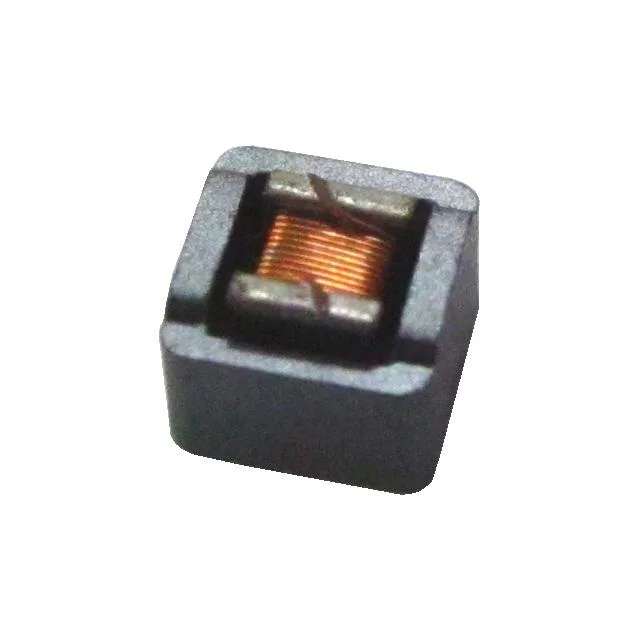

FIXED IND 3.9UH 1.2A 290 MOHM
| Inductance | 3.9 µH |
| Tolerance | ±10% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 290mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.150" L x 0.150" W (3.81mm x 3.81mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 3.9UH 1.2A 290 MOHM |
| Series | BWPS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 30 @ 1MHz |
| selfResonantFreq | 172MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.116" (2.94mm) |
| features | - |
