Description

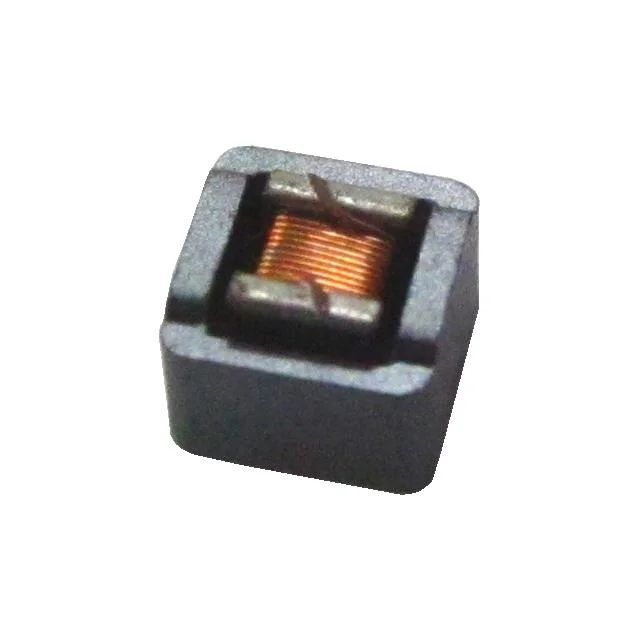

FIXED IND 680UH 120MA 24 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWPS00383829681M00.
BWPS00383829681M00 has an inductance value of 680 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWPS00383829681M00 is rated for 120 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWPS00383829681M00 lists a DC resistance of 24Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWPS00383829681M00 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWPS00383829681M00 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating | 120 mA |
| DC Resistance (DCR) | 24Ohm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.150" L x 0.150" W (3.81mm x 3.81mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 680UH 120MA 24 OHM SMD |
| Series | BWPS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 33 @ 1MHz |
| Self Resonant Frequency | 2.5MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.116" (2.94mm) |
