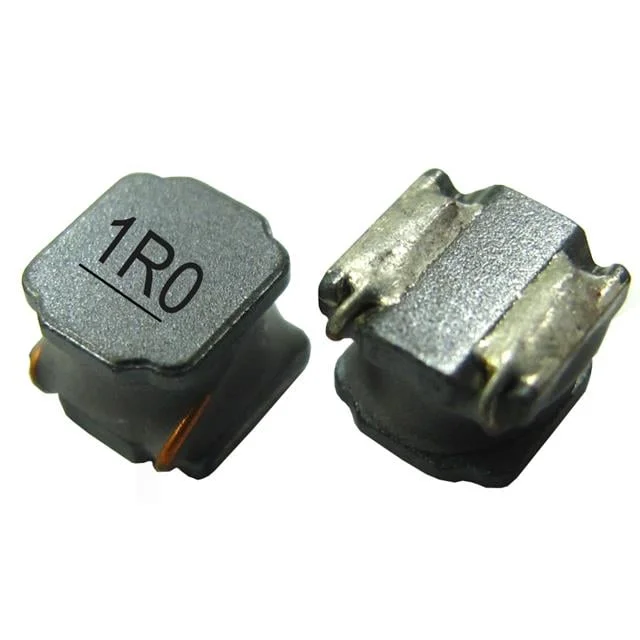

FIXED IND 1UH 6.57A 10 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating | 6.57 A |
| DC Resistance (DCR) | 10mOhm |
| saturationCurrent | 11.7A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1UH 6.57A 10 MOHM SMD |
| Series | BWVC |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2424 |
| heightMax | 0.185" (4.70mm) |
| features | - |
