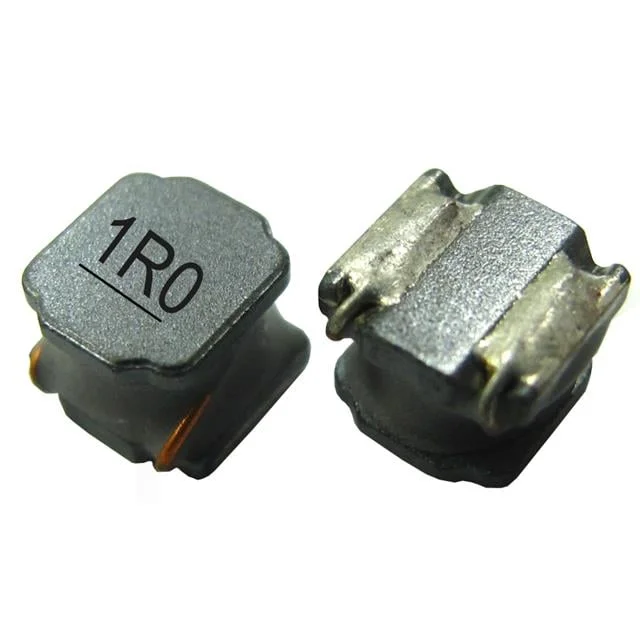

FIXED IND 1.5UH 2.34A 63 MOHM
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating | 2.34 A |
| DC Resistance (DCR) | 63mOhm |
| saturationCurrent | 2.7A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Case / Size | 1212 (3030 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.5UH 2.34A 63 MOHM |
| Series | BWVF |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1212 |
| heightMax | 0.059" (1.50mm) |
| features | - |
