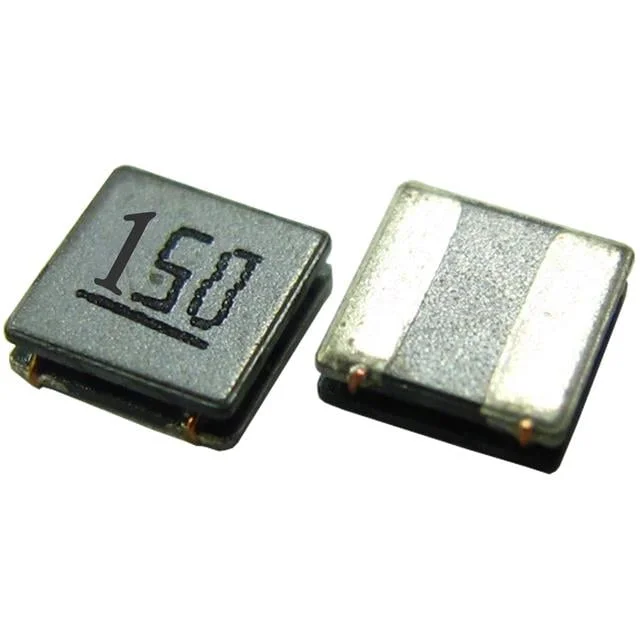

Description
FIXED IND 4.7UH 680MA 520 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWVH002016104R7TH1.
BWVH002016104R7TH1 has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWVH002016104R7TH1 is rated for 680 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWVH002016104R7TH1 lists a DC resistance of 520mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWVH002016104R7TH1 uses a package or case of 0806 (2016 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWVH002016104R7TH1 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 680 mA |
| DC Resistance (DCR) | 520mOhm |
| Saturation Current | 800mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Package / Case | 0806 (2016 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 4.7UH 680MA 520 MOHM |
| Series | BWVH |
| Product Status | Active |
| Shielding | Shielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0806 |
| Height - Seated (Max) | 0.040" (1.02mm) |
