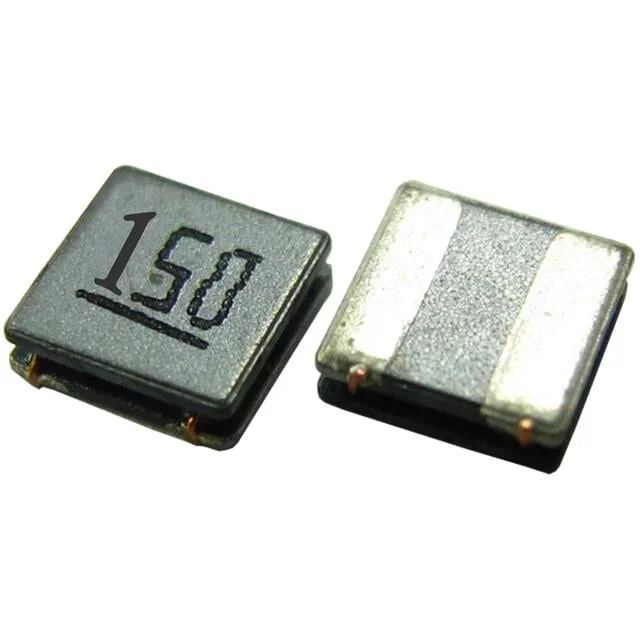

FIXED IND 330NH 2.1A 48 MOHM SMD
| Inductance | 330 nH |
| Tolerance | ±30% |
| Current Rating | 2.1 A |
| DC Resistance (DCR) | 48mOhm |
| saturationCurrent | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 330NH 2.1A 48 MOHM SMD |
| Series | BWVH |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0806 |
| heightMax | 0.040" (1.02mm) |
| features | - |
