Description

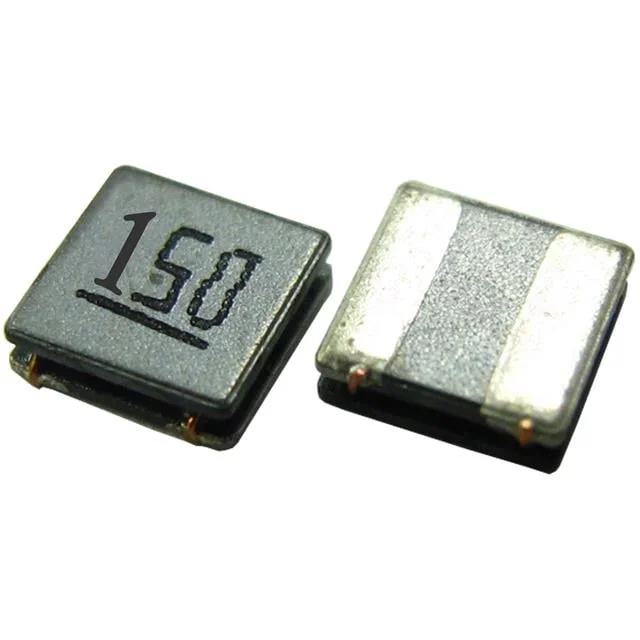

FIXED IND 470NH 2.6A 31 MOHM SMD
Specifications
Inductance
470 nH
Current Rating
2.6 A
DC Resistance (DCR)
31mOhm
Dimensions
0.098" L x 0.079" W (2.50mm x 2.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/17/2026| Inductance | 470 nH |
| Tolerance | ±30% |
| Current Rating | 2.6 A |
| DC Resistance (DCR) | 31mOhm |
| saturationCurrent | 3.7A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 470NH 2.6A 31 MOHM SMD |
| Series | BWVH |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 |
| heightMax | 0.049" (1.25mm) |
| features | - |
