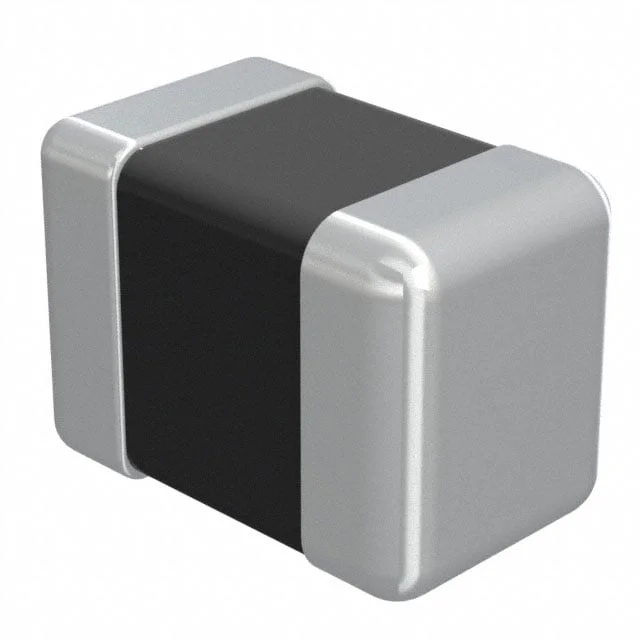

CB2012T2R2MV
Taiyo Yuden
Description
FIXED IND 2.2UH 620MA 299 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CB2012T2R2MV.
CB2012T2R2MV has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CB2012T2R2MV is rated for 620 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CB2012T2R2MV lists a DC resistance of 299mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CB2012T2R2MV uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CB2012T2R2MV to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 620 mA |
| DC Resistance (DCR) | 299mOhm Max |
| Saturation Current | 410mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 2.2UH 620MA 299 MOHM |
| Series | CB |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 80MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.057" (1.45mm) |
