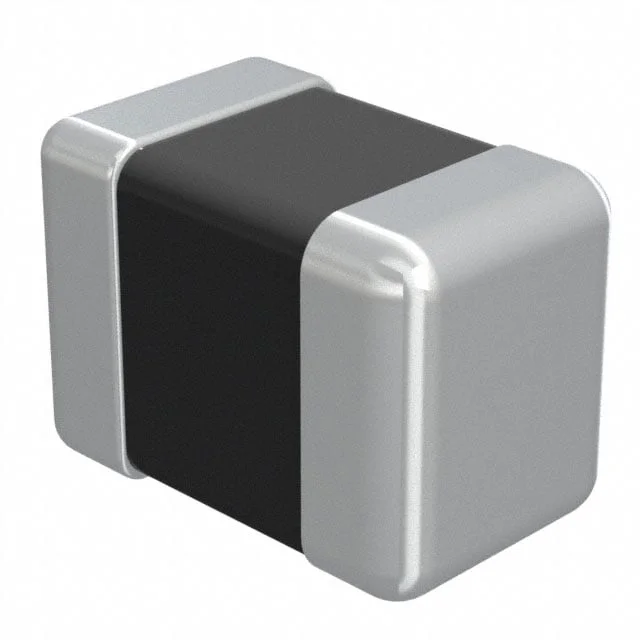

CBC2012T1R0MV
Taiyo Yuden
Description
FIXED IND 1UH 640MA 247 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CBC2012T1R0MV.
CBC2012T1R0MV has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CBC2012T1R0MV is rated for 640 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CBC2012T1R0MV lists a DC resistance of 247mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CBC2012T1R0MV uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CBC2012T1R0MV to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 640 mA |
| DC Resistance (DCR) | 247mOhm Max |
| Saturation Current | 700mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1UH 640MA 247 MOHM SMD |
| Series | CB, C Type |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 100MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.057" (1.45mm) |
