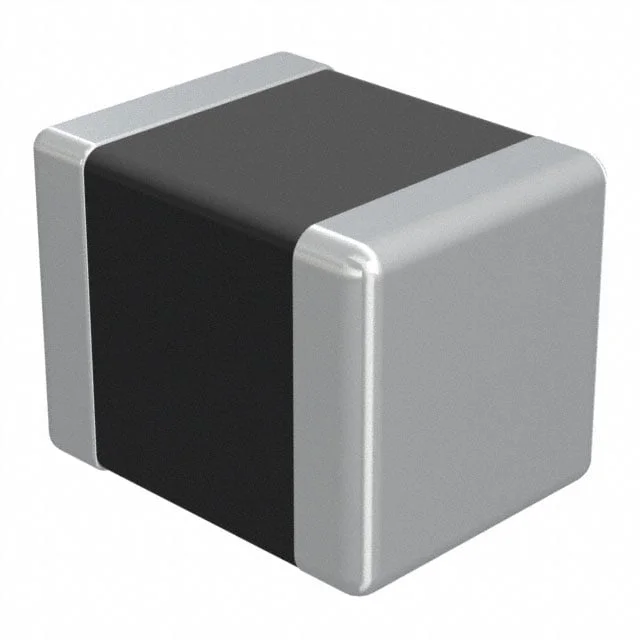

Description
FIXED IND 220UH 170MA 3.25 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CBC3225T221MRV.
CBC3225T221MRV has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CBC3225T221MRV is rated for 170 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CBC3225T221MRV lists a DC resistance of 3.25Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CBC3225T221MRV uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CBC3225T221MRV to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 170 mA |
| DC Resistance (DCR) | 3.25Ohm Max |
| Saturation Current | 190mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 220UH 170MA 3.25 OHM |
| Series | CB, C Type |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 3MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.106" (2.70mm) |
