Description

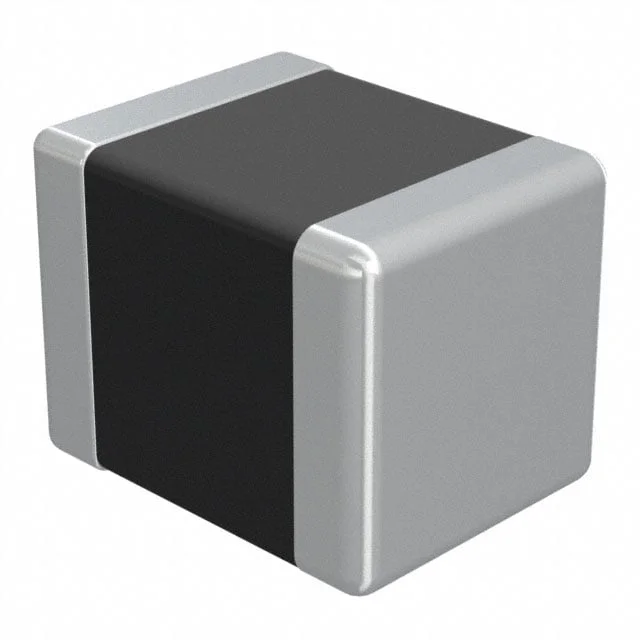

FIXED IND 68UH 260MA 1.3 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CBC3225T680MRV.
CBC3225T680MRV has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CBC3225T680MRV is rated for 260 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CBC3225T680MRV lists a DC resistance of 1.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CBC3225T680MRV uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CBC3225T680MRV to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 260 mA |
| DC Resistance (DCR) | 1.3Ohm Max |
| Saturation Current | 320mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 68UH 260MA 1.3 OHM SMD |
| Series | CB, C Type |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 8MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.106" (2.70mm) |
