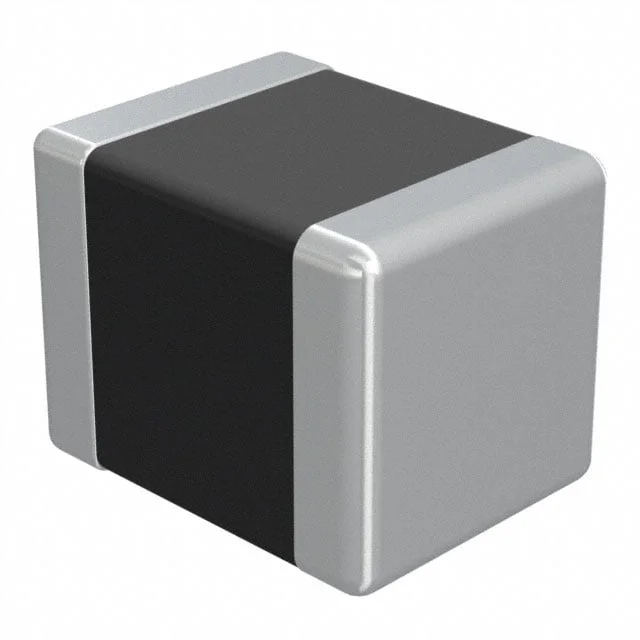

Description
FIXED IND 820UH 110MA 15.6 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CBC3225T821KR.
CBC3225T821KR has an inductance value of 820 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CBC3225T821KR is rated for 110 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CBC3225T821KR lists a DC resistance of 15.6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CBC3225T821KR uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CBC3225T821KR to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 820 µH |
| Tolerance | ±10% |
| Current Rating | 110 mA |
| DC Resistance (DCR) | 15.6Ohm Max |
| Saturation Current | 110mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 820UH 110MA 15.6 OHM |
| Series | CB |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Semi-Shielded |
| Self Resonant Frequency | 1.8MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 (3225 Metric) |
| Height - Seated (Max) | 0.106" (2.70mm) |
