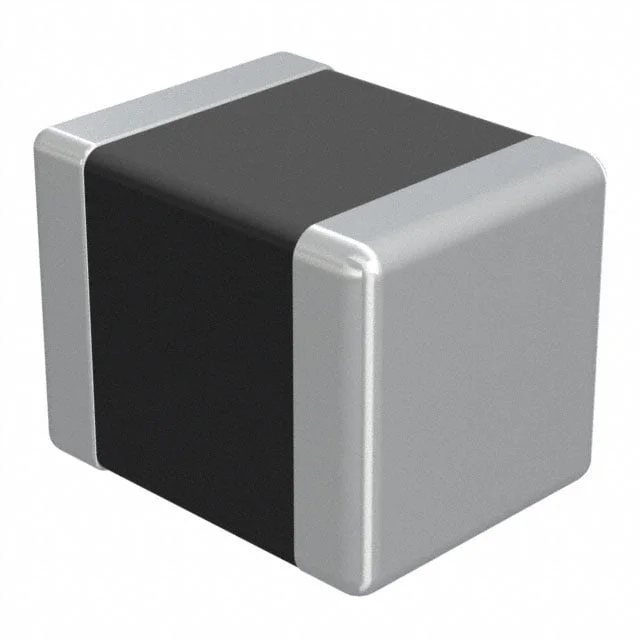

FIXED IND 820UH 80MA 15.6 OHM
| Inductance | 820 µH |
| Tolerance | ±20% |
| Current Rating | 80 mA |
| DC Resistance (DCR) | 15.6Ohm Max |
| saturationCurrent | 110mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 820UH 80MA 15.6 OHM |
| Series | CB, C Type |
| productStatus | Not For New Designs |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 1.8MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1210 |
| heightMax | 0.106" (2.70mm) |
| features | - |
