Description

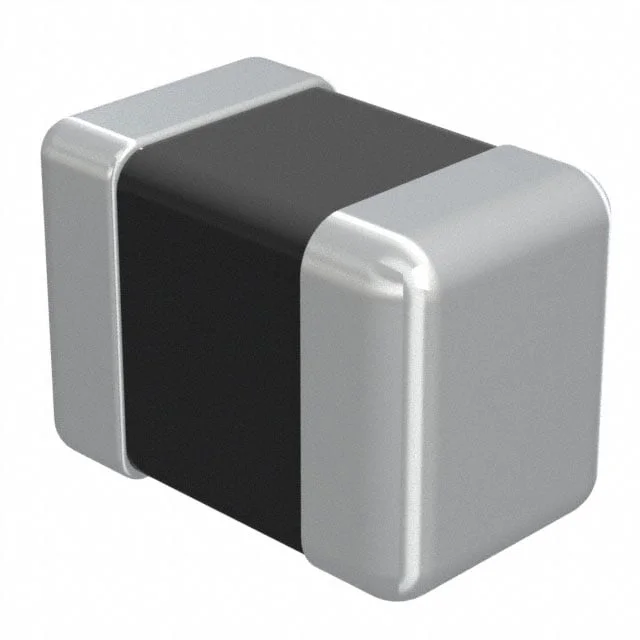

FIXED IND 1UH 220MA 260 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CK21251R0M-T.
CK21251R0M-T has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CK21251R0M-T is rated for 220 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CK21251R0M-T lists a DC resistance of 260mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CK21251R0M-T uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CK21251R0M-T to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 220 mA |
| DC Resistance (DCR) | 260mOhm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 1UH 220MA 260 MOHM SMD |
| Series | CK |
| Product Status | Obsolete |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 10MHz |
| Self Resonant Frequency | 75MHz |
| Inductance Test Frequency | 10 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.057" (1.45mm) |
