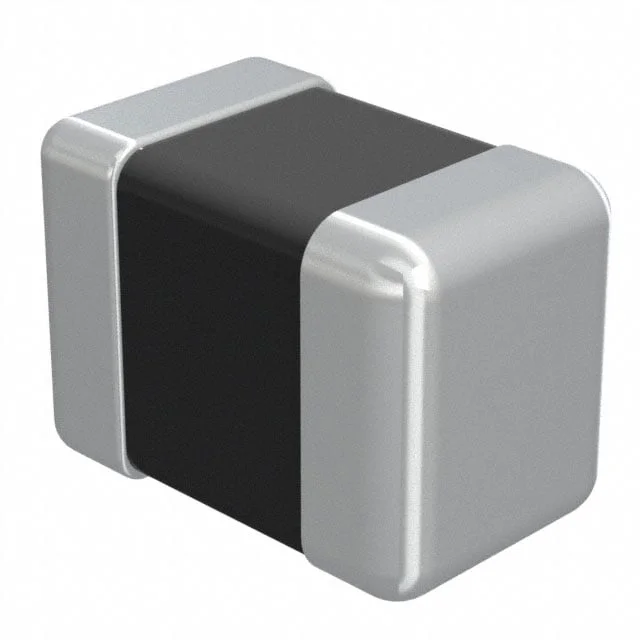

FIXED IND 2.2UH 1.3A 160 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 160mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 2.2UH 1.3A 160 MOHM |
| Series | CK, P Type |
| productStatus | Obsolete |
| typeConstruction | Multilayer |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.039" (1.00mm) |
| features | - |
