Description

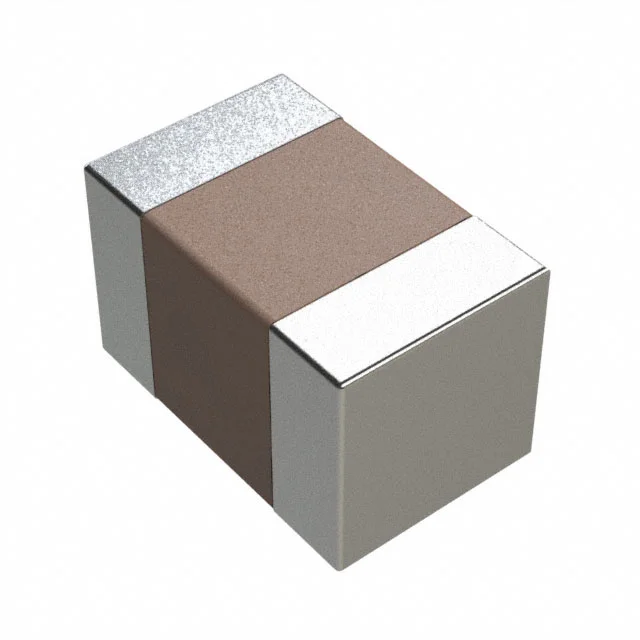

FIXED IND 12UH 5MA 1.25 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CV201210-120K.
CV201210-120K has an inductance value of 12 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CV201210-120K is rated for 5 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CV201210-120K lists a DC resistance of 1.25Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CV201210-120K uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CV201210-120K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 12 µH |
| Tolerance | ±10% |
| Current Rating | 5 mA |
| DC Resistance (DCR) | 1.25Ohm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 12UH 5MA 1.25 OHM SMD |
| Series | CV201210 |
| Product Status | Active |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 45 @ 2MHz |
| Self Resonant Frequency | 22MHz |
| Ratings | - |
| Inductance Test Frequency | 2 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.057" (1.45mm) |
| Features | - |
