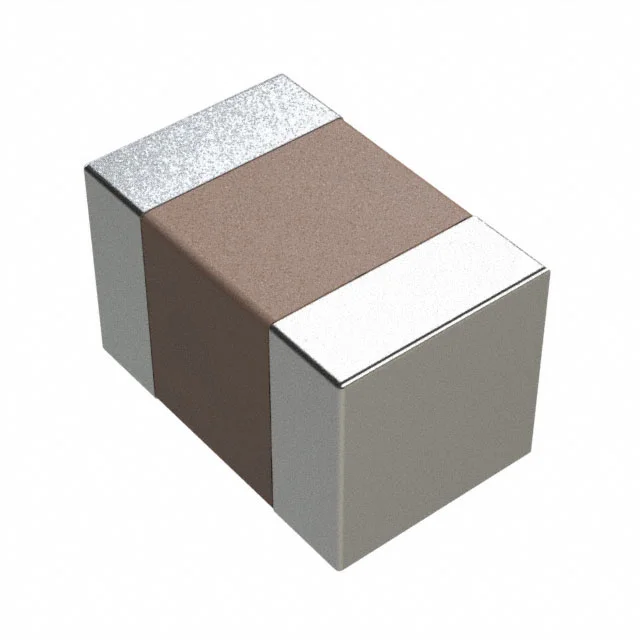

FIXED IND 1.2UH 50MA 500 MOHM
| Inductance | 1.2 µH |
| Tolerance | ±10% |
| Current Rating | 50 mA |
| DC Resistance (DCR) | 500mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.2UH 50MA 500 MOHM |
| Series | CV201210 |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 45 @ 10MHz |
| selfResonantFreq | 65MHz |
| ratings | - |
| testFrequency | 10 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.041" (1.05mm) |
| features | - |
