Description

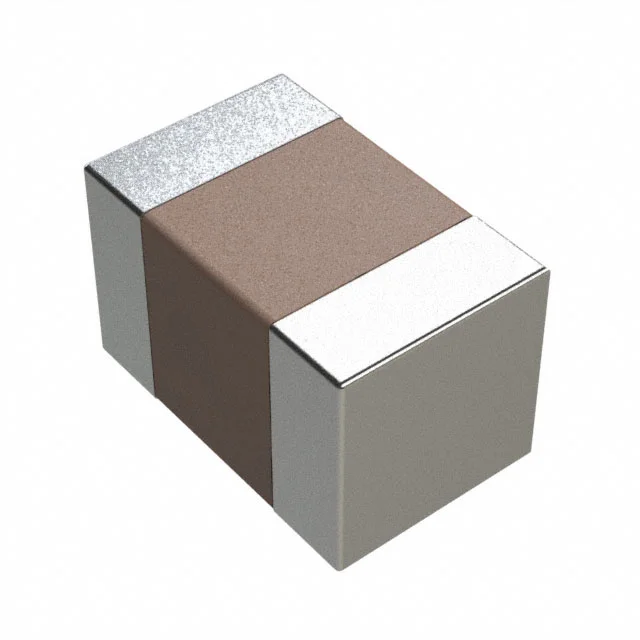

FIXED IND 68NH 300MA 200 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CV201210-68NK.
CV201210-68NK has an inductance value of 68 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CV201210-68NK is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CV201210-68NK lists a DC resistance of 200mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CV201210-68NK uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CV201210-68NK to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 68 nH |
| Tolerance | ±10% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 200mOhm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68NH 300MA 200 MOHM |
| Series | CV201210 |
| Product Status | Active |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 15 @ 50MHz |
| Self Resonant Frequency | 280MHz |
| Ratings | - |
| Inductance Test Frequency | 50 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Features | - |
