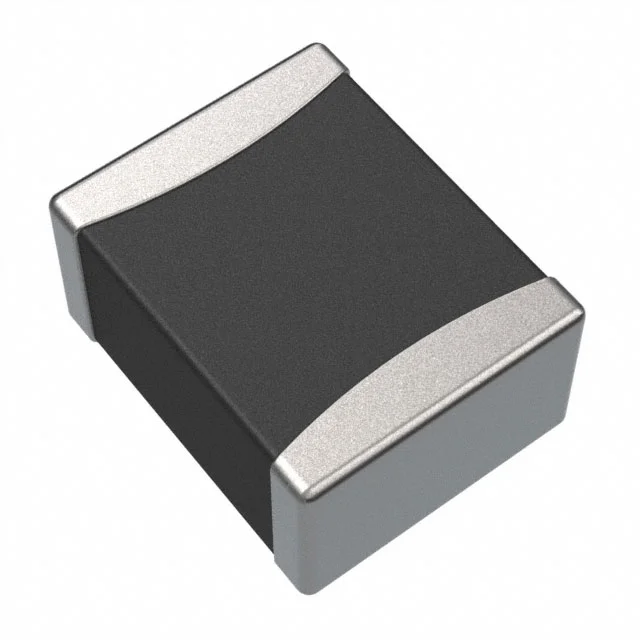

FIXED IND 2.2UH 1.2A 137.5 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 137.5mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 1.2A 137.5 MOHM |
| Series | CVH201610A |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 50MHz |
| ratings | AEC-Q200 |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0806 |
| heightMax | 0.039" (1.00mm) |
| features | - |
