Description

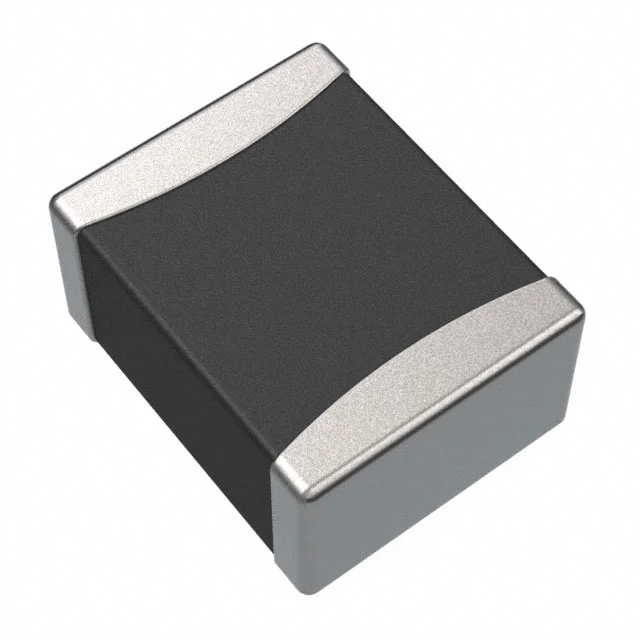

FIXED IND 470NH 1.6A 75 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CVH201610A-R47M.
CVH201610A-R47M has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CVH201610A-R47M is rated for 1.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CVH201610A-R47M lists a DC resistance of 75mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CVH201610A-R47M uses a package or case of 0806 (2016 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CVH201610A-R47M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 75mOhm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | 0806 (2016 Metric) |
| Package / Case | 0806 (2016 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470NH 1.6A 75 MOHM SMD |
| Series | CVH201610A |
| Product Status | Active |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 80MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0806 |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Features | - |
