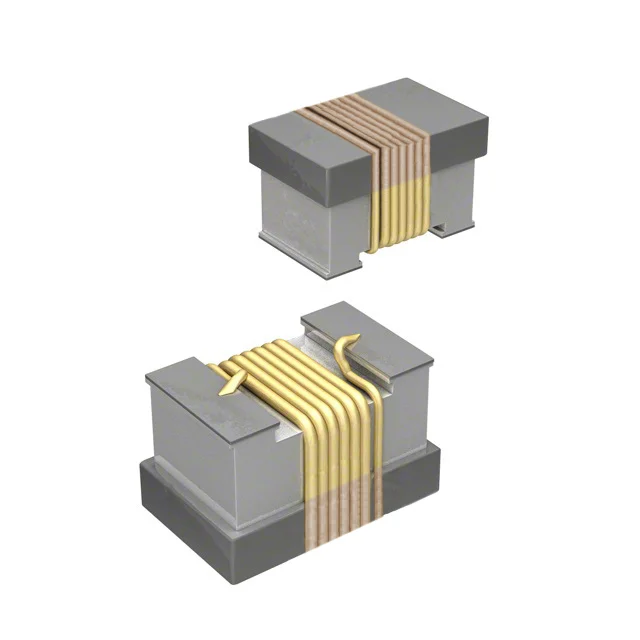

FIXED IND 11NH SURFACE MOUNT
| Inductance | 11 nH |
| Tolerance | ±5% |
| Current Rating | - |
| DC Resistance (DCR) | - |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Case / Size | 0402 (1005 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 11NH SURFACE MOUNT |
| Series | CW100505 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 250 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.024" (0.60mm) |
| features | - |
