Description

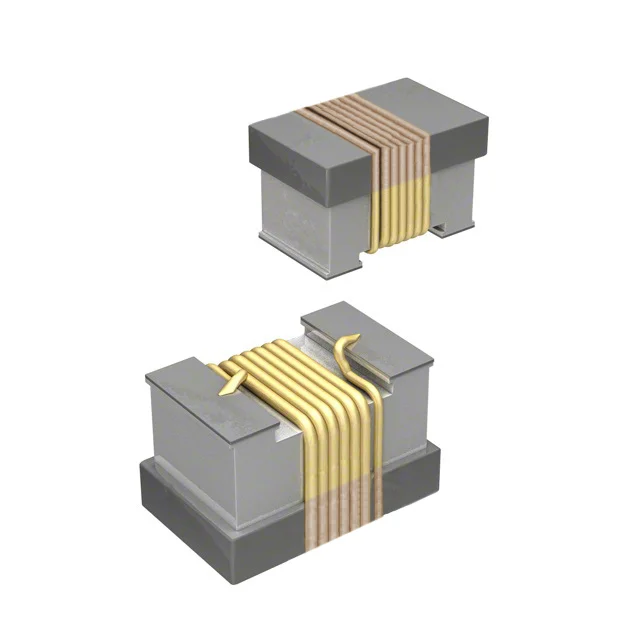

FIXED IND 13NH SURFACE MOUNT
Specifications
Inductance
13 nH
Dimensions
0.039" L x 0.022" W (1.00mm x 0.55mm)
Parameter Guide
Understand the key electrical and mechanical specifications for CW100505-13NJ.
Inductance
13 nH
CW100505-13NJ has an inductance value of 13 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
0402 (1005 Metric)
CW100505-13NJ uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW100505-13NJ to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 13 nH |
| Tolerance | ±5% |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 13NH SURFACE MOUNT |
| Series | CW100505 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.024" (0.60mm) |
