Description

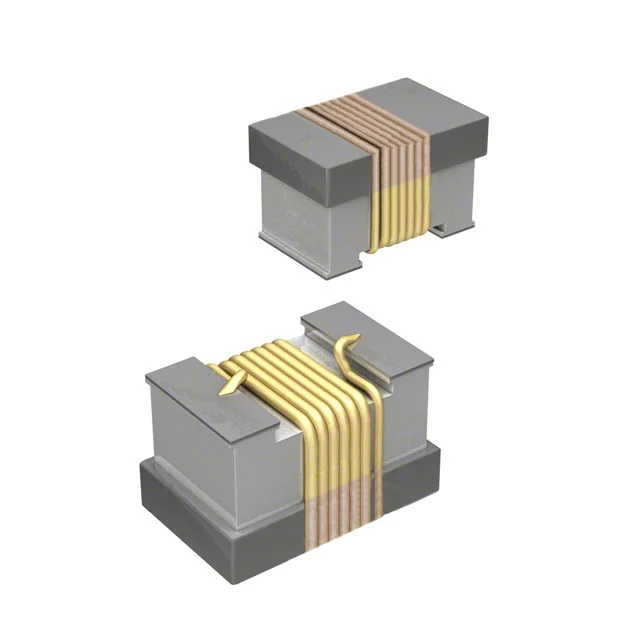

FIXED IND 4.3NH SURFACE MOUNT
Specifications
Inductance
4.3 nH
Dimensions
0.039" L x 0.022" W (1.00mm x 0.55mm)
Parameter Guide
Understand the key electrical and mechanical specifications for CW100505-4N3J.
Inductance
4.3 nH
CW100505-4N3J has an inductance value of 4.3 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
0402 (1005 Metric)
CW100505-4N3J uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW100505-4N3J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.3 nH |
| Tolerance | ±5% |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.3NH SURFACE MOUNT |
| Series | CW100505 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.024" (0.60mm) |
