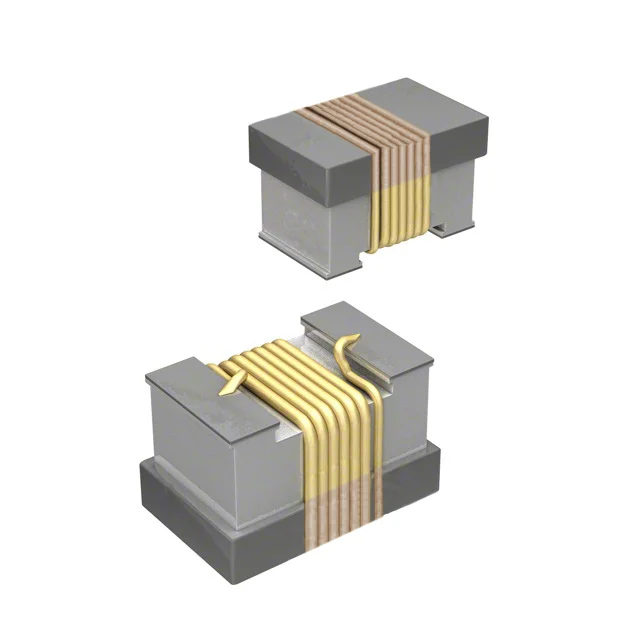

FIXED IND 56NH 200MA 970 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW100505-56NJ3.
CW100505-56NJ3 has an inductance value of 56 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW100505-56NJ3 is rated for 200 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW100505-56NJ3 lists a DC resistance of 970mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW100505-56NJ3 uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW100505-56NJ3 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 56 nH |
| Tolerance | ±5% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 970mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 56NH 200MA 970 MOHM |
| Series | CW100505 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 22 @ 200MHz |
| Self Resonant Frequency | 1.76GHz |
| Inductance Test Frequency | 200 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 (1005 Metric) |
| Height - Seated (Max) | 0.024" (0.60mm) |
