Description

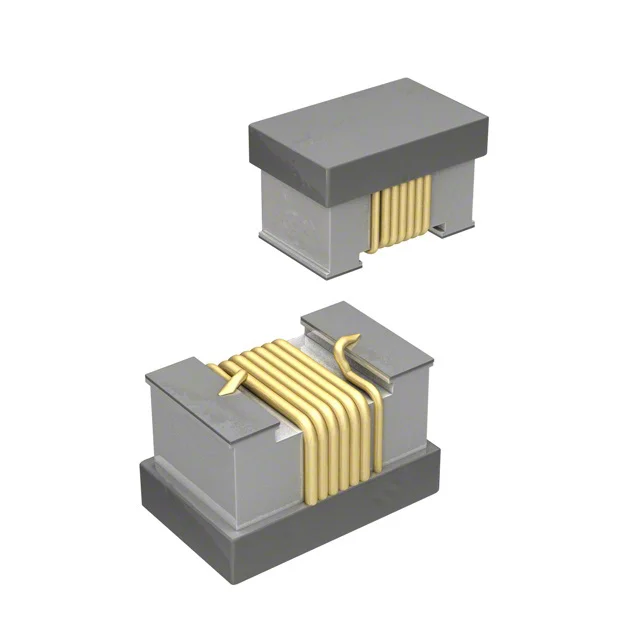

FIXED IND 33NH 600MA 220 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW160808-33NG.
CW160808-33NG has an inductance value of 33 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW160808-33NG is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW160808-33NG lists a DC resistance of 220mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW160808-33NG uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW160808-33NG to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 nH |
| Tolerance | ±2% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 220mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33NH 600MA 220 MOHM |
| Series | CW160808 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Q @ Frequency | 35 @ 250MHz |
| Self Resonant Frequency | 2.3GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.047" (1.20mm) |
