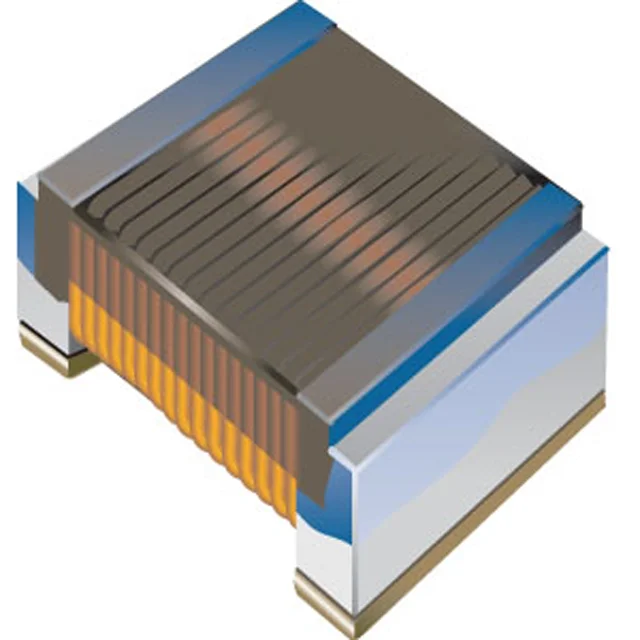

Description
FIXED IND 3.3NH SURFACE MOUNT
Specifications
Inductance
3.3 nH
Dimensions
0.065" L x 0.041" W (1.65mm x 1.05mm)
Parameter Guide
Understand the key electrical and mechanical specifications for CW160808-3N3K.
Inductance
3.3 nH
CW160808-3N3K has an inductance value of 3.3 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
Nonstandard
CW160808-3N3K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW160808-3N3K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.3 nH |
| Tolerance | ±10% |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.3NH SURFACE MOUNT |
| Series | CW160808 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Q @ Frequency | 16 @ 250MHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
