Description

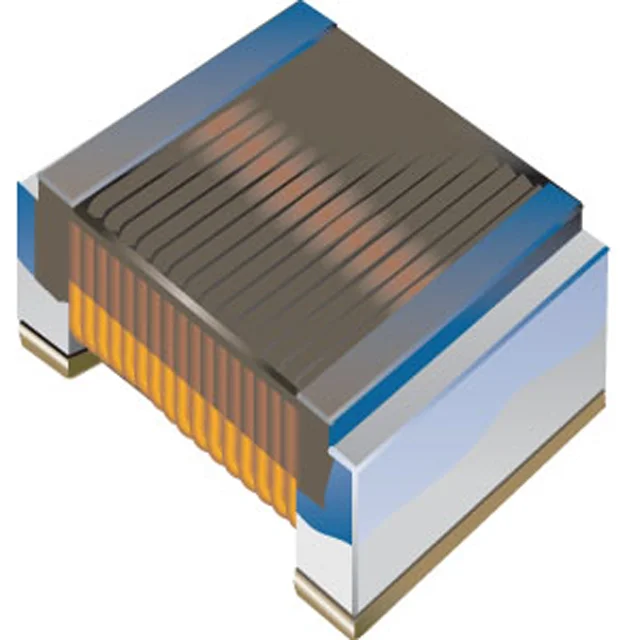

FIXED IND 3.9NH 700MA 80 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW160808-3N9G.
CW160808-3N9G has an inductance value of 3.9 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW160808-3N9G is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW160808-3N9G lists a DC resistance of 80mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW160808-3N9G uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW160808-3N9G to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 3.9 nH |
| Tolerance | ±2% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 80mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.9NH 700MA 80 MOHM |
| Series | CW160808 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Q @ Frequency | 16 @ 250MHz |
| Self Resonant Frequency | 6GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
