Description

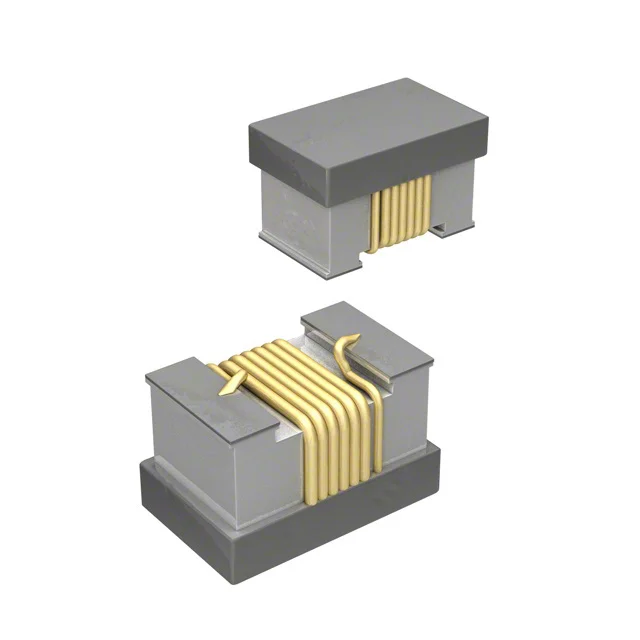

FIXED IND 100NH 400MA 710 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW160808-R10G.
CW160808-R10G has an inductance value of 100 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW160808-R10G is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW160808-R10G lists a DC resistance of 710mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW160808-R10G uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW160808-R10G to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 nH |
| Tolerance | ±2% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 710mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100NH 400MA 710 MOHM |
| Series | CW160808 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Q @ Frequency | 34 @ 250MHz |
| Self Resonant Frequency | 1.4GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.047" (1.20mm) |
