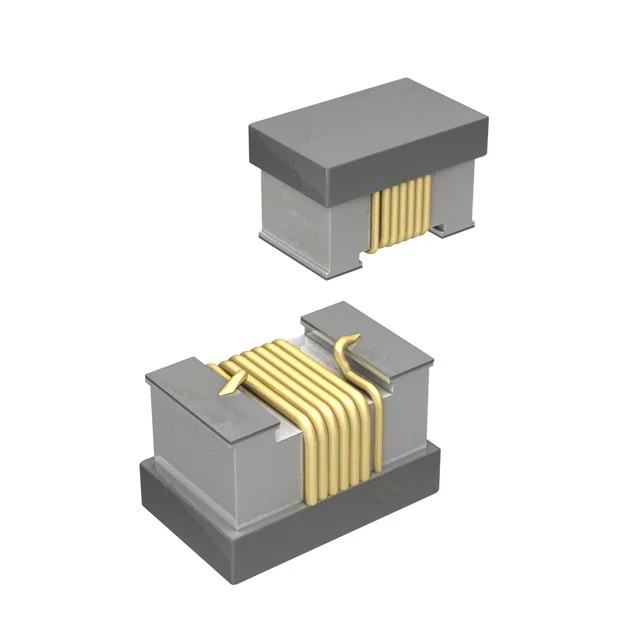

Description
FIXED IND 150NH 280MA 920 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW160808-R15J.
CW160808-R15J has an inductance value of 150 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW160808-R15J is rated for 280 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW160808-R15J lists a DC resistance of 920mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW160808-R15J uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW160808-R15J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 nH |
| Tolerance | ±5% |
| Current Rating | 280 mA |
| DC Resistance (DCR) | 920mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150NH 280MA 920 MOHM |
| Series | CW160808 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Q @ Frequency | 28 @ 150MHz |
| Self Resonant Frequency | 1.3GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.047" (1.20mm) |
