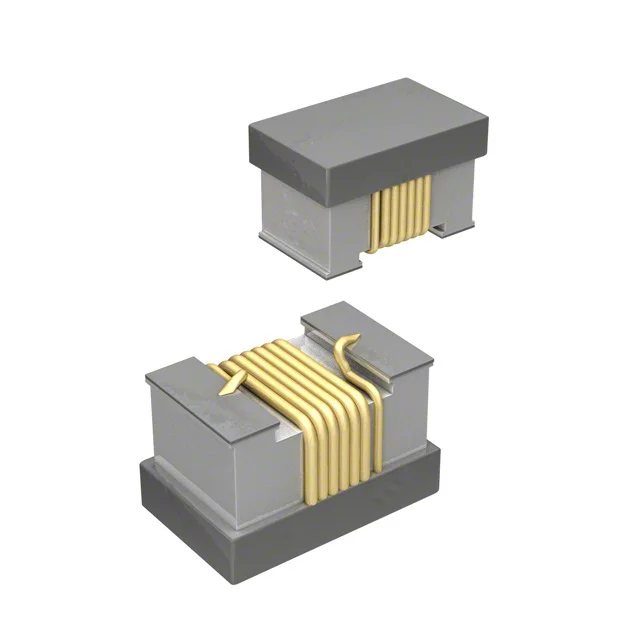

Description
FIXED IND 390NH SURFACE MOUNT
Specifications
Inductance
390 nH
Dimensions
0.065" L x 0.041" W (1.65mm x 1.05mm)
Parameter Guide
Understand the key electrical and mechanical specifications for CW160808-R39J.
Inductance
390 nH
CW160808-R39J has an inductance value of 390 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
0603 (1608 Metric)
CW160808-R39J uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW160808-R39J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 390 nH |
| Tolerance | ±5% |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 390NH SURFACE MOUNT |
| Series | CW160808 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.047" (1.20mm) |
