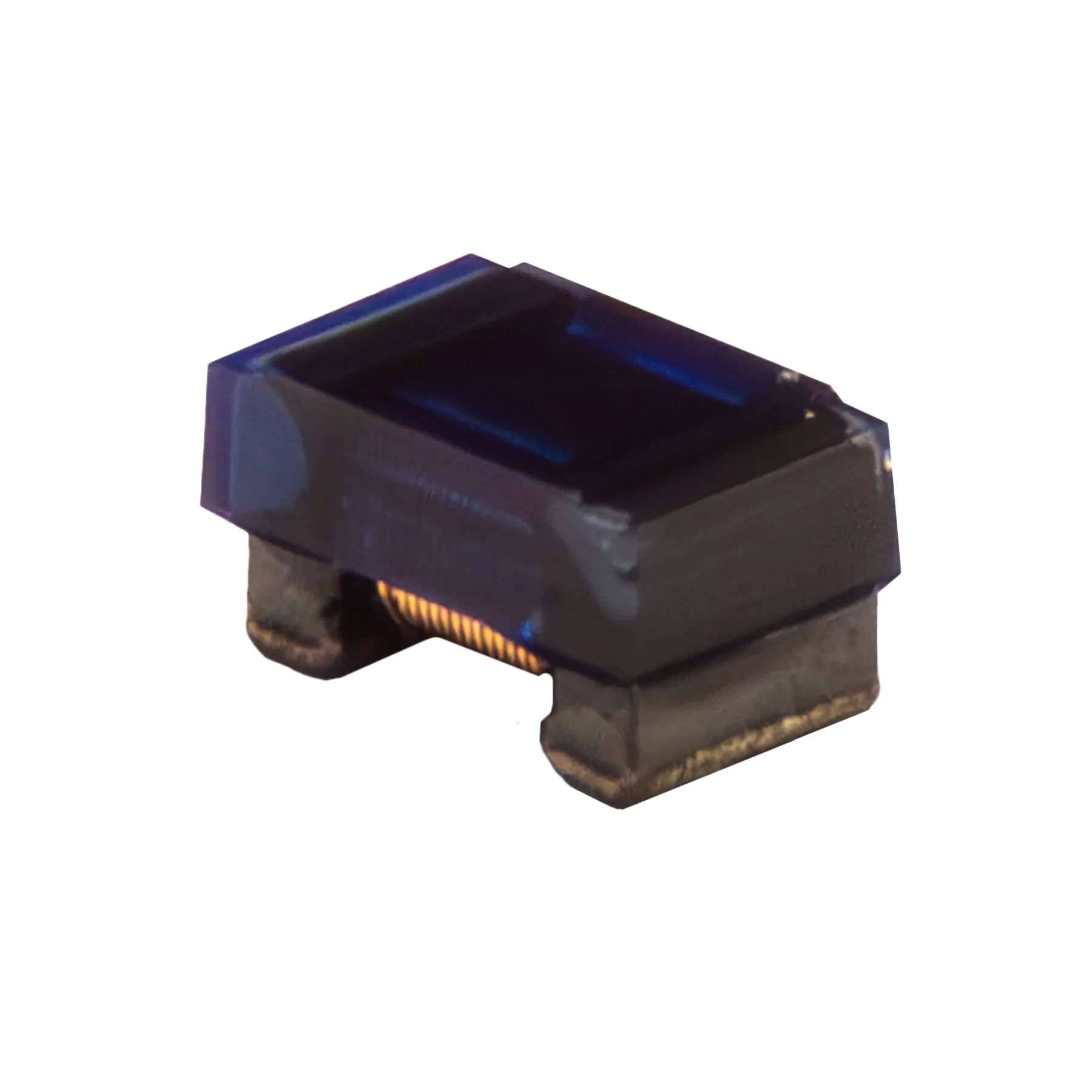

FIXED IND 33NH 130 MOHM SMD
| Inductance | 33 nH |
| Tolerance | ±10% |
| Current Rating | - |
| DC Resistance (DCR) | 130mOhm Max |
| saturationCurrent | 600mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.094" L x 0.063" W (2.40mm x 1.60mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33NH 130 MOHM SMD |
| Series | CW2012A |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 60 @ 500MHz |
| selfResonantFreq | 2.05GHz |
| ratings | AEC-Q200 |
| testFrequency | 250 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 |
| heightMax | 0.055" (1.40mm) |
| features | - |
