Description

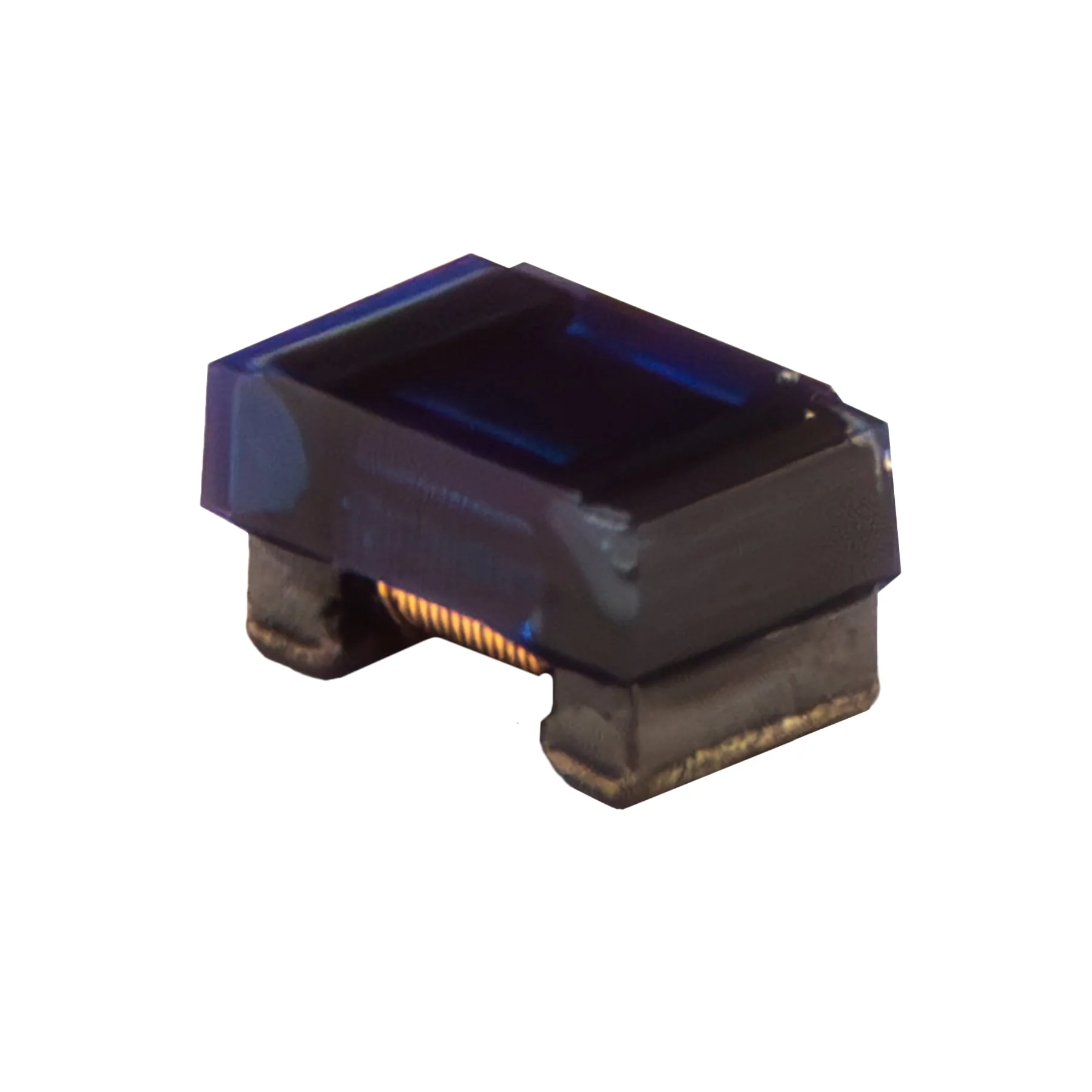

FIXED IND 120NH 550 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW2012A-R12K.
CW2012A-R12K has an inductance value of 120 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW2012A-R12K is rated for 400 mA Max. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW2012A-R12K lists a DC resistance of 550mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW2012A-R12K uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW2012A-R12K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 120 nH |
| Tolerance | ±10% |
| Current Rating | 400 mA Max |
| DC Resistance (DCR) | 550mOhm Max |
| Saturation Current | 400mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.094" L x 0.063" W (2.40mm x 1.60mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 120NH 550 MOHM SMD |
| Series | CW2012A |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 250MHz |
| Self Resonant Frequency | 1.1GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.055" (1.40mm) |
