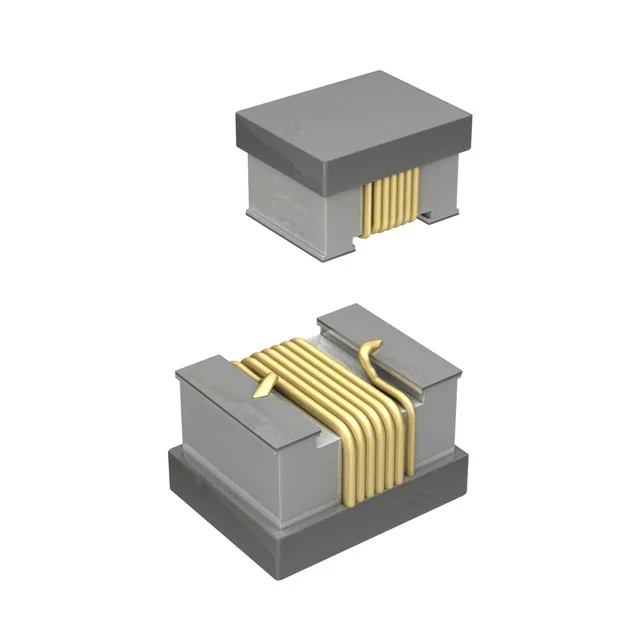

FIXED IND 1.2UH 280MA 2 OHM SMD
| Inductance | 1.2 µH |
| Tolerance | ±5% |
| Current Rating | 280 mA |
| DC Resistance (DCR) | 2Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.2UH 280MA 2 OHM SMD |
| Series | CW252016 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 25 @ 7.9MHz |
| selfResonantFreq | 250MHz |
| ratings | - |
| testFrequency | 7.9 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.071" (1.80mm) |
