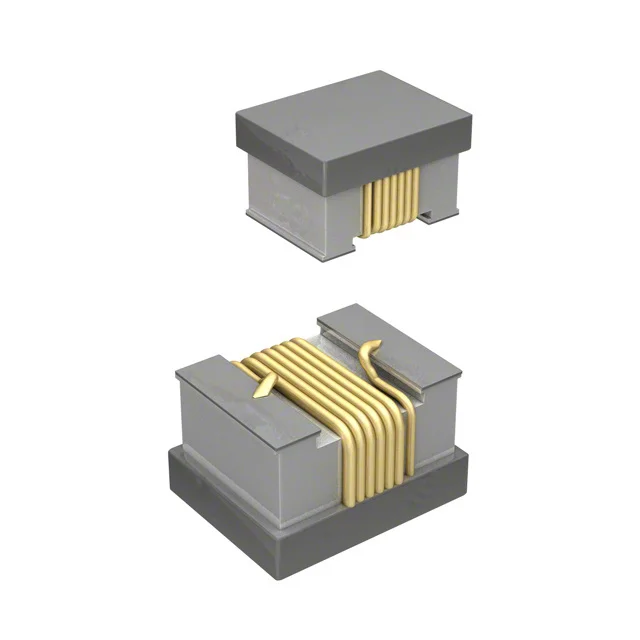

FIXED IND 560NH 400MA 1.33 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW252016-R56J.
CW252016-R56J has an inductance value of 560 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW252016-R56J is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW252016-R56J lists a DC resistance of 1.33Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW252016-R56J uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW252016-R56J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 nH |
| Tolerance | ±5% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 1.33Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 560NH 400MA 1.33 OHM |
| Series | CW252016 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 45 @ 100MHz |
| Self Resonant Frequency | 415MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
