Description

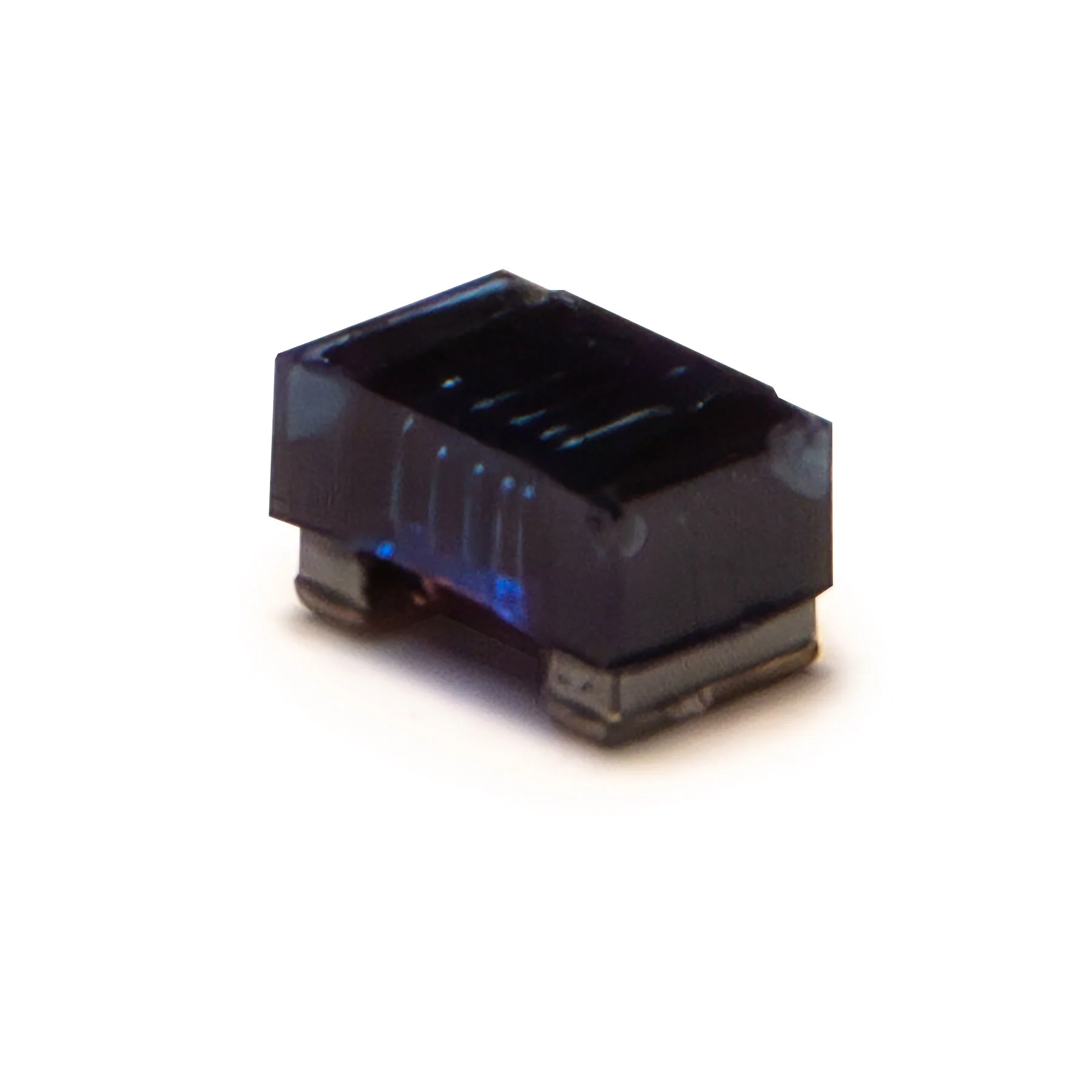

FIXED IND 10UH 280MA 1.85 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CWF1610A-100M.
CWF1610A-100M has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CWF1610A-100M is rated for 280 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CWF1610A-100M lists a DC resistance of 1.85Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CWF1610A-100M uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CWF1610A-100M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 280 mA |
| DC Resistance (DCR) | 1.85Ohm |
| Saturation Current | 280mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 280MA 1.85 OHM |
| Series | CWF1610A |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 14 @ 2.5MHz |
| Self Resonant Frequency | 36MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 2.5 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.043" (1.10mm) |
