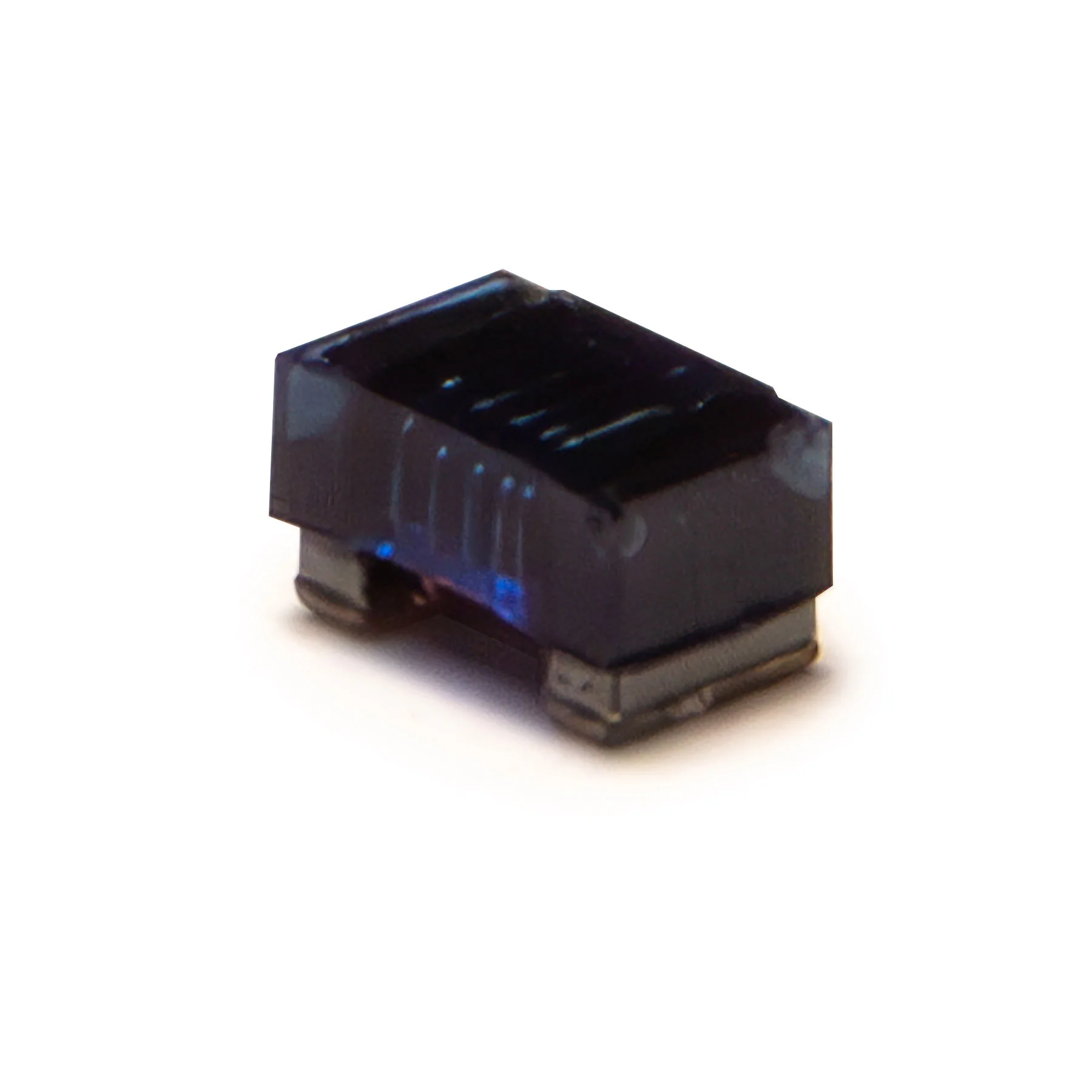

FIXED IND 3.3UH 500MA 700 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 700mOhm |
| saturationCurrent | 500mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| Case / Size | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.3UH 500MA 700 MOHM |
| Series | CWF1610A |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 16 @ 7.9MHz |
| selfResonantFreq | 66MHz |
| ratings | AEC-Q200 |
| testFrequency | 7.9 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0603 |
| heightMax | 0.043" (1.10mm) |
| features | - |
