Description

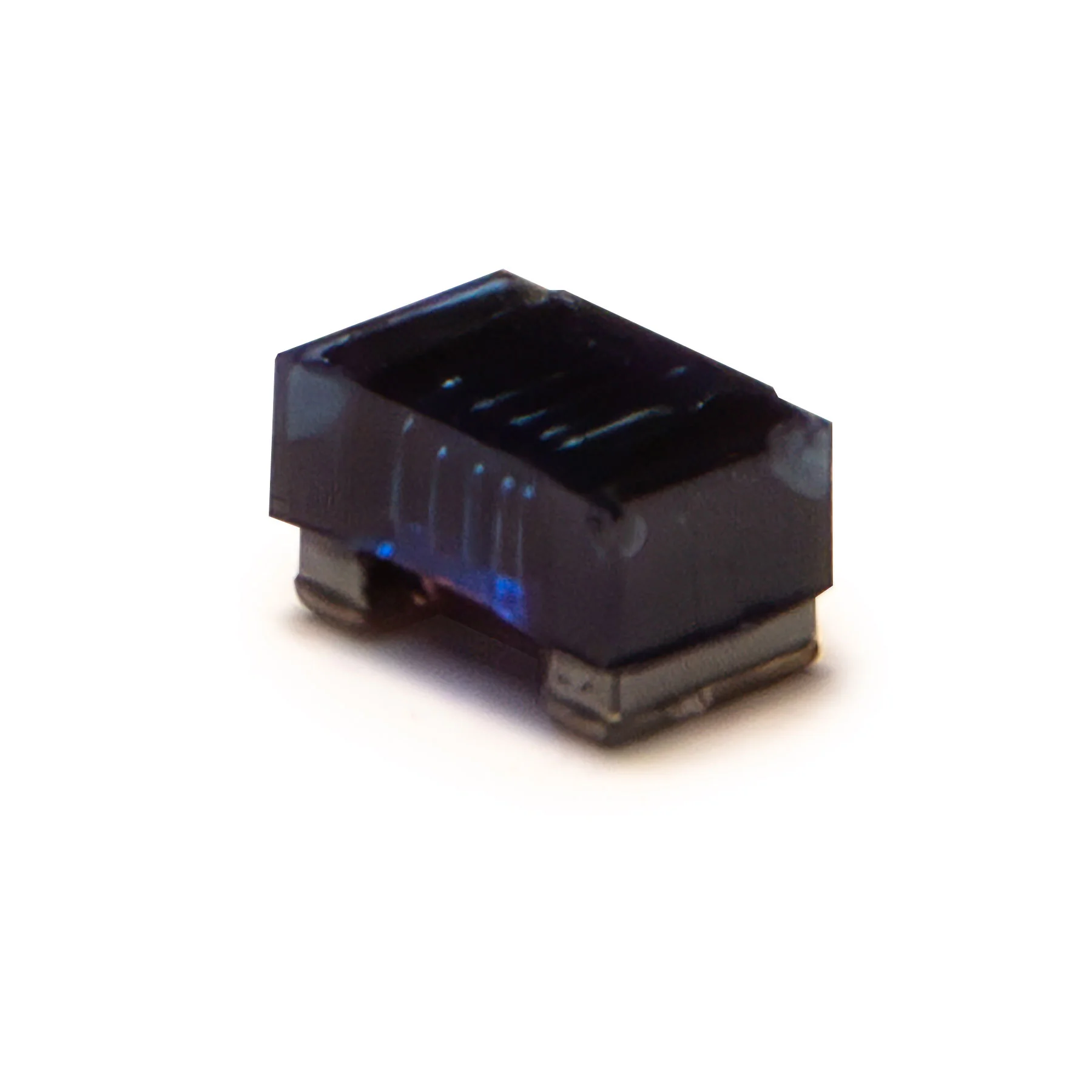

FIXED IND 150NH 1.3A 74 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CWF1610A-R15M.
CWF1610A-R15M has an inductance value of 150 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CWF1610A-R15M is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CWF1610A-R15M lists a DC resistance of 74mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CWF1610A-R15M uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CWF1610A-R15M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 74mOhm |
| Saturation Current | 1.7A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150NH 1.3A 74 MOHM SMD |
| Series | CWF1610A |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 13 @ 7.9MHz |
| Self Resonant Frequency | 1.05GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.043" (1.10mm) |
