Description

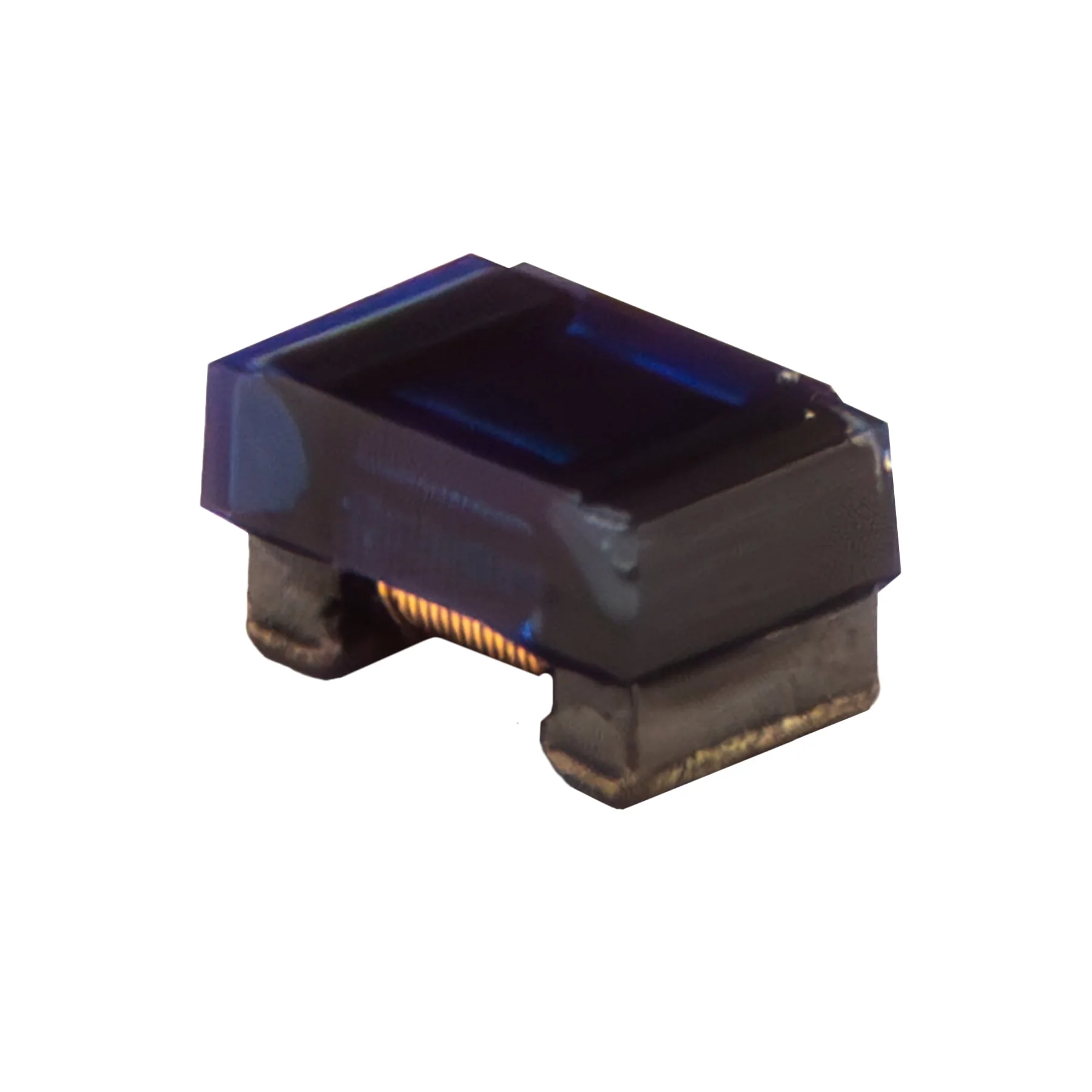

FIXED IND 680NH 280 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CWF2012A-R68M.
CWF2012A-R68M has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CWF2012A-R68M is rated for 670 mA Max. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CWF2012A-R68M lists a DC resistance of 280mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CWF2012A-R68M uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CWF2012A-R68M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 670 mA Max |
| DC Resistance (DCR) | 280mOhm Max |
| Saturation Current | 670mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.094" L x 0.063" W (2.40mm x 1.60mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680NH 280 MOHM SMD |
| Series | CWF2012A |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 10 @ 7.96MHz |
| Self Resonant Frequency | 565MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.055" (1.40mm) |
